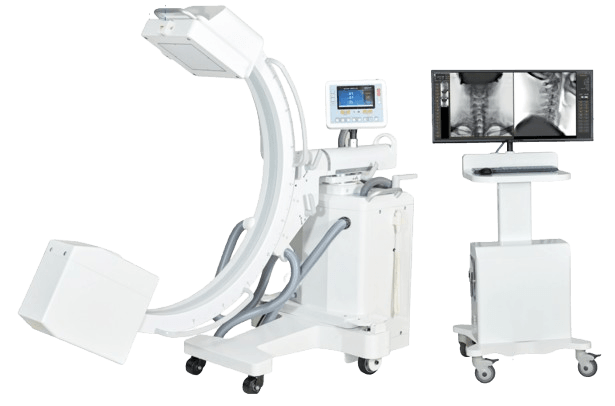

Digital C-ARM System

ARMES 35F by Medien Healthcare

ARMES 35F

Digital C-ARM System


The ARMES 35F is a high-performance digital C-arm system equipped with a 1M Flat Panel Detector and 3.5kW high-frequency generator, delivering sharp, clear images with less radiation exposure for surgical and interventional procedures.


  • 1M High Resolution Flat Panel Detector (1,024 x 1,024 pixel)
  • 3.5kW High-Frequency Generator for clear, precise images
  • SID 1,000mm with 845mm free treatment space
  • C-arm 10-way Rotating for maximum positioning flexibility
  • 34" Wide Monitor, height adjustable
  • ABS (Automatic Brightness System) for automatic radiation control
  • BLADE Image Processing Program with DICOM 3.0 support
  • Wiz PACS integration for seamless medical image management
  • Pulse mode to reduce radiation exposure and improve image quality
  • Angiography available (optional)

 Download Catalogue


Specifications

  • Generator: 3.5kW HF
  • FPD: 1,024 x 1,024 pixel
  • Structure: SID 1,000mm (Free space: 845mm)
  • C-arm 10-way Rotating
  • ±225° Rotating angle
  • 120° Orbital Rotation
  • 25° Wig/Wag
  • BLADE Image Processing Program loaded
  • DICOM 3.0
  • Angiography available (option)

Why ARMES 35F?

1. Less Dosage, Sharper Image
  • ABS (Automatic Brightness System) automatically controls radiation amount
  • 1M Flat Panel Detector for high quality images
  • 3.5kW high frequency generator for clear, precise imaging
  • Helps medical staff easily obtain clear images and prevent unnecessary radiation exposure
2. User-Friendly Flexibility
  • 845mm free space for wide treatment area
  • C-arm 10-way Rotating for convenient positioning
  • 200mm Horizontal Distance movement
  • 450mm Vertical Distance movement
  • ±225° Rotating angle & 120° Orbital Rotation
3. System to PACS, All-in-One
  • BLADE Viewer: self-developed image processing with live window width/level, zoom, rotation, panning & noise elimination
  • Wiz PACS: self-developed PACS software, fully DICOM 3.0 compatible
  • Pulse mode to reduce radiation & improve image quality
  • Convenient patient registration & management via live screen worklist
