Urine Analyzer

Rapid Urine Chemistry Testing — Desktop & Handheld Solutions for Clinical and Point-of-Care Settings

We carry two Urine Analyzer solutions — choose the one that fits your setting:

BIOBASE BW200 BW300

BIOBASE

BW200 / BW300

Benchtop desktop analyzer — up to 514 tests/hour, 14 parameters, built-in printer & LIS connectivity

View Details ↓
EMP Handheld Urine Analyzer

EMP • EMPSUN

Handheld Urine Analyzer

Portable handheld — 70 sec/strip, up to 14 parameters, Bluetooth & WiFi, battery-powered

View Details ↓

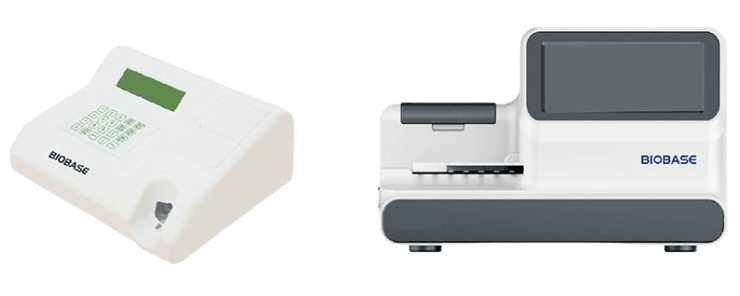

BIOBASE

BW200 / BW300

Benchtop Urine Analyzer — Fast, Accurate & Fully Automated


The BIOBASE BW200 and BW300 Urine Analyzers deliver fast, accurate urine chemistry results with up to 14 test parameters. The BW300 elevates performance further with Artificial Intelligence + Computer Perception Technology, reaching throughput of 514 tests per hour — ideal for high-volume clinical laboratories.


  • 14 test parameters: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC, ONE, CAL, MAL
  • BW200: 60–120 tests/hour • BW300: 514 tests/hour
  • BW200: LCD display • BW300: 7-inch touch screen
  • Built-in thermal printer for instant result printout
  • RS232 interface — connectable to urine sediment systems and LIS
  • Built-in fault diagnosis function for reliable operation
  • BW300: AI-powered image capture & archiving of each strip result
  • BW300: Environmental temperature monitoring minimises lab interference
  • Stores up to 2,000 patient results (BW200) • Mass storage (BW300)
  • Operating temperature 10–35°C, humidity <85%

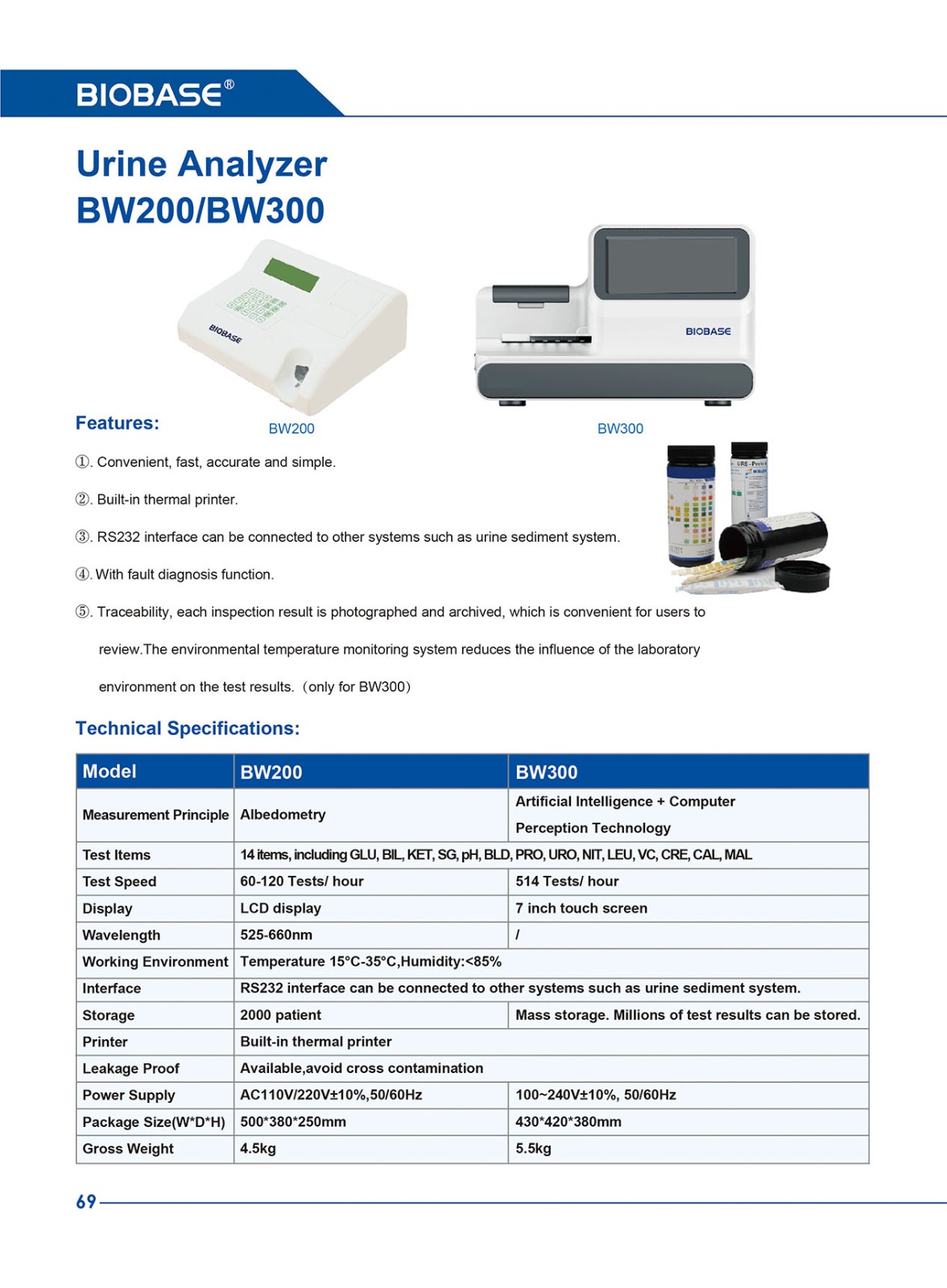

BIOBASE BW200 BW300 Urine Analyzer

Key Features

Engineered for high-volume clinical labs and point-of-care settings

Comprehensive 14-Parameter Testing

Screens for glucose, bilirubin, ketone, specific gravity, pH, blood, protein, urobilinogen, nitrite, leukocytes, vitamin C, and more in a single pass.

AI-Powered Analysis (BW300)

Artificial Intelligence combined with Computer Perception Technology achieves 514 tests per hour with image capture and archiving of every inspection result.

Built-In Printer & LIS Connectivity

On-board thermal printer provides instant patient reports. RS232 interface enables seamless connection to urine sediment systems and laboratory information systems.

Fault Diagnosis Function

Built-in self-diagnostics detect operational issues proactively, minimising downtime and ensuring consistent analytical performance.

Temperature-Stable Results (BW300)

Environmental temperature monitoring system actively compensates for laboratory ambient conditions, reducing their influence on test outcomes.

Large Result Storage

BW200 stores 2,000 patient records; BW300 offers mass storage capable of retaining millions of test results for traceability and audit purposes.

Technical Specifications

Parameter BW200 BW300
Measurement Principle Abidimetry Artificial Intelligence + Computer Perception Technology
Test Items 14 items: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC, ONE, CAL, MAL
Test Speed 60–120 tests/hour 514 tests/hour
Display LCD display 7-inch touch screen
Storage 2,000 patient records Mass storage (millions of results)
Interface RS232 (connectable to urine sediment systems & LIS)
Printer Built-in thermal printer
Working Temperature 10–35°C
Working Humidity <85%
Power Supply AC 110V/220V ±10%, 50/60Hz 100–240V ±10%, 50/60Hz
Package Size (W×D×H) 500 × 380 × 280 mm 430 × 430 × 380 mm
Gross Weight 4.5 kg 5.5 kg

EMP • EMPSUN

Handheld Urine Analyzer

Ui Series — Portable, Fast & Reliable Point-of-Care Urine Testing


The EMP Handheld Urine Analyzer (Ui Series) brings laboratory-quality urine chemistry screening into the palm of your hand. Compact and battery-powered, it delivers semi-quantitative results in just 70 seconds per strip — ideal for community hospitals, health centres, clinics, and home care settings.


  • Results in only 70 seconds per strip — 140 tests/hour (fast mode)
  • 11, 12, or 14 test parameters depending on model
  • Tests include: Leukocytes, Urobilinogen, Nitrite, Protein, pH, Blood, Specific Gravity, Ketone, Bilirubin, Glucose, Vitamin C ± Microalbumin, Creatinine, Calcium
  • Automatic strip capture and result reporting — no manual reading
  • On-screen display • optional wireless handheld thermal printer
  • Stores up to 1,000 recent test results
  • Bluetooth & WiFi connectivity (Ui-2A Series)
  • Capacitive touch keypad across all models
  • CE certified • compact form factor — fits in a coat pocket
  • Suitable for community hospitals, public health centres & home care

 Download Brochure

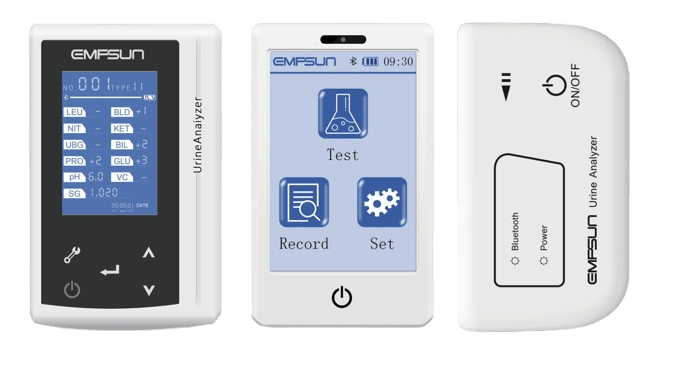

EMP EMPSUN Handheld Urine Analyzer

Key Features

Designed for portability, speed, and reliable results wherever care is delivered

Ultra-Fast 70-Second Results

Delivers semi-quantitative urine chemistry results in just 70 seconds per strip, with throughput of up to 140 tests per hour in fast mode.

Truly Portable & Battery-Powered

Compact handheld form factor with lithium battery (Ui, Ui-2A) or AAA dry battery (Ui-10A). Small enough to carry in a coat pocket or medical bag.

Up to 14 Test Parameters

The Ui-2A Series supports 11, 12, or 14 test items — expandable to include Microalbumin, Creatinine, and Calcium for comprehensive renal screening.

Wireless Connectivity

Ui-2A Series includes Bluetooth and WiFi for wireless data transfer to EMR/LIS systems. Optional wireless thermal printer for on-the-spot result printing.

Automatic Strip Reading

Automatically captures and interprets strip colour reactions — eliminating human error from visual reading and ensuring consistent, reproducible results.

Wide Application Settings

Suitable for community hospitals, GP clinics, public health centres, healthcare centres, and home care — wherever rapid urine screening is needed.

Model Comparison & Specifications

Parameter Ui Series Ui-2A Series Ui-10A Series
Screen LCD screen 3.5” TFT + Touch Screen No screen
Keypad Capacitive touch key
Speed 140 tests/hour (fast mode) • 50 tests/hour (normal mode)
Test Items 11 11 / 12 / 14 11 / 12 / 14
Dimensions (mm) 110 × 68 × 27 106 × 63 × 27.5 110 × 62 × 27.5
Storage Capacity 1,000 recent test results
Printer Wireless Thermal Printer (optional)
Interface Mini USB Micro USB
Battery Lithium battery AAA Dry battery
Bluetooth ✓ ✓ ✓
WiFi — ✓ —

11 standard test items: Leukocytes, Urobilinogen, Nitrite, Protein, pH, Blood, Specific Gravity, Ketone, Bilirubin, Glucose, Vitamin C  •  12-item adds Microalbumin  •  14-item adds Microalbumin, Creatinine & Calcium
