Biocare

iM 12

Multi-Parameter Patient Monitor System

A comprehensive bedside monitoring solution for adult, pediatric, and neonate patients — with a high-resolution 12.1″ color display and up to 10 hours of battery-powered operation.

12.1″ high resolution color TFT display (800 × 600)
Standard: ECG, HR, RESP, NIBP, SpO₂, TEMP
Optional 12-lead ECG for detailed cardiac analysis
20 types of ventricular arrhythmia & S-T segment analysis
480-hour graphic & tabular trends; 700-piece NIBP storage
2-hour ECG waveform review
Dual Li-ion battery — up to 10 hours continuous operation
Touch screen & handwriting input (optional)
Wireless connection with Central Monitoring System (CMS)
Anti high-frequency electrotome & defibrillation protection

Download Brochure

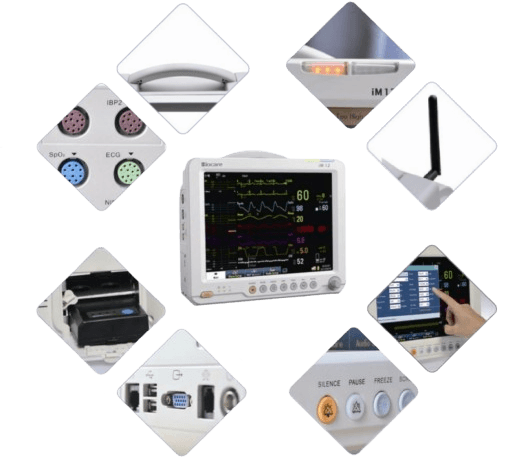

Key Features

Designed for versatile clinical environments from ICU to general wards

12.1″ Color TFT Display

High resolution 800×600 display with up to 13 waveforms, 10 adjustable brightness levels, and 32 selectable parameter colors.

ECG & Arrhythmia Analysis

3-lead and 5-lead selectable; optional 12-lead ECG. Detects 20 types of ventricular arrhythmia with S-T segment and pacer pulse analysis.

Dual Li-ion Battery

Rechargeable 14.8V 4400mAh dual battery system supports up to 10 hours of continuous operation — ideal for transport and bedside use.

Comprehensive Trend Storage

Maximum 480-hour graphic and tabular trends, 700-piece NIBP records, 700-piece event recalls, and 2-hour holographic waveform storage.

Wireless & Wired Connectivity

Wi-Fi and wired network support for bi-directional communication with a Central Monitoring System (CMS) and nurse call integration.

Multiple Display Modes

Standard, large font intensive care, trend graph co-display, 7-lead / 12-lead full screen, bed-to-bed view, OxyCRG, and drug dose calculation screens.

Touch Screen & Handwriting

Optional full touch-screen with handwriting input for fast patient data entry. Durable silicon buttons with backlight for physical control.

EtCO₂ & IBP Options

Supports mainstream and sidestream EtCO₂ (CAPNOSTAT5 & LoFlo modules) and 2-channel invasive blood pressure (IBP) monitoring.

Anesthetic Depth Monitoring

Optional CSI / IOC anesthetic depth index monitoring with wireless transmission — supports integration with submodule units.

Standard Configuration

✓ECG — 3-lead & 5-lead selectable, 12-lead optional
✓HR — Adult: 15–300 bpm; Pediatric/Neonate: 15–350 bpm
✓RESP — Trans-thoracic impedance, 0–150 rpm
✓NIBP — Automatic oscillometric, manual/auto/continuous
✓SpO₂ — 0–100%, resolution 1%, accuracy ±2%
✓TEMP — 2 channels, 0°C–50°C, accuracy ±0.1°C

Optional Add-Ons

○12-lead ECG for comprehensive cardiac diagnosis
○EtCO₂ — mainstream, sidestream & microstream
○2-IBP — ART, PA, P1, P2, LAP, RAP, ICP, CVP
○CSI / IOC anesthetic depth index monitoring
○Touch screen, trolley, wall mounting, VGA output
○Central monitoring system, nurse call, recorder

Technical Specifications

General
Dimension	310 × 163 × 285 mm
Weight	4.8 kg
Display	12.1″ color TFT, 800×600
Power Supply	AC 100V–240V, 50/60 Hz
Battery	14.8V 4400mAh, up to 10 hours
Patient Range	Adult, pediatric, neonate
Operating Temp.	0°C – 40°C

NIBP
Method	Automatic oscillometric
Adult Systolic	40–270 mmHg
Adult Diastolic	10–210 mmHg
Resolution	1 mmHg

SpO₂
Range	0%–100%
Accuracy	±2% (70%–100%)
PR Range	25–250 bpm
