Auto Hematology Analyzer (FBC)

Full Blood Count — Precision Diagnostics for Clinical Laboratories

Available Models

BIOBASE BK-3200 Auto Hematology Analyzer

BIOBASE

BK-3200

Auto Hematology Analyzer — 21 Parameters & 3 Histograms

  • ✓60 samples/hour, 24-hour continuous operation
  • ✓21 parameters + 3 histograms (WBC, RBC, PLT)
  • ✓Cyanide-free HGB, electrical impedance method
  • ✓9.7″ touch screen • Bi-directional LIS
  • ✓Venous, capillary & prediluted modes
View Details
Ozelle EHBT-75 7-Diff Auto Hematology Analyzer

Ozelle

EHBT-75

7-Diff Auto Hematology Analyzer — AI-Powered Morphology

  • ✓7-Diff: NST, NSG, NSH, ALY, PAg & RET classification
  • ✓Deep learning AI for cell identification
  • ✓AI morphological report in 6 minutes
  • ✓Single-use cartridge, maintenance-free
  • ✓Capillary or venous blood, 30–60µL sample
View Details

BIOBASE

BK-3200

Auto Hematology Analyzer — 21 Parameters & 3 Histograms


High-throughput, cyanide-free hematology analysis with 60 samples per hour and full LIS connectivity for clinical laboratories of any size.


  • 21 parameters including WBC 3-Diff, RBC, HGB, PLT, and more
  • 3 histograms — WBC, RBC & PLT displayed simultaneously
  • 60 samples/hour — continuous 24-hour operation
  • 9.7-inch color touch LCD screen for easy operation
  • Cyanide-free HGB detection via electrical impedance method
  • Venous, capillary & prediluted counting modes
  • 100,000 results stored with histogram
  • Bi-directional LIS support

 Download Brochure

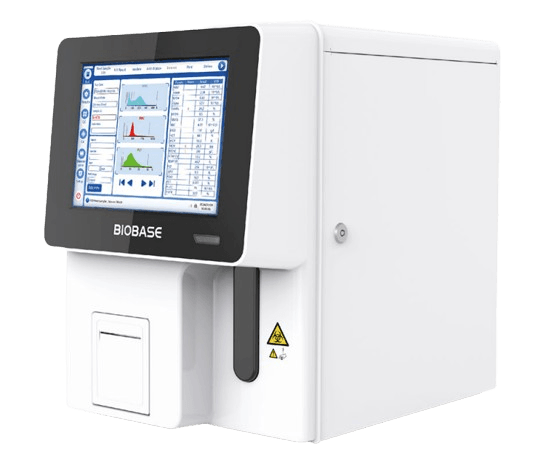

BIOBASE BK-3200 Auto Hematology Analyzer

BK-3200 Key Features

Designed for accuracy, reliability and continuous clinical workflow

9.7″ Touch LCD Screen

Color touch display shows all 21 parameters and 3 histograms on a single screen simultaneously.

60 Samples / Hour

High throughput with continuous 24-hour operation capability to meet busy lab demands.

Cyanide-Free HGB Detection

Electrical impedance method with colorimetric HGB measurement — safer for operators and environment.

Auto & Manual Calibration

Both automatic and manual calibration modes available for flexible lab protocols.

Intelligent Blockage Removal

High voltage burn and reverse high-pressure flush for automatic unclogging and alarm function.

Bi-Directional LIS

Full LIS connectivity with 100,000 stored results, USB, network and RS232 serial interfaces.

BK-3200 Technical Specifications

Parameter Specification
Model BK-3200
Throughput 60 samples/hour
Principle Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB
Parameters 21 parameters: WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC
Histograms 3 histograms (WBC, RBC, PLT)
Sample Volume Whole blood: 12µl  |  Prediluted: 20µl
Counting Modes Venous, capillary, prediluted
Data Input 9.7-inch touch screen, mouse, keyboard (optional)
Storage 100,000 results with histogram
Interface 4 USB ports, network port, RS232 serial port
LIS Bi-directional LIS supported
Power Supply 100–240 AC, 50/60Hz, 150VA
Work Temperature 15–30°C
External Size (W×D×H) 295 × 467 × 418 mm
Net Weight 19 kg

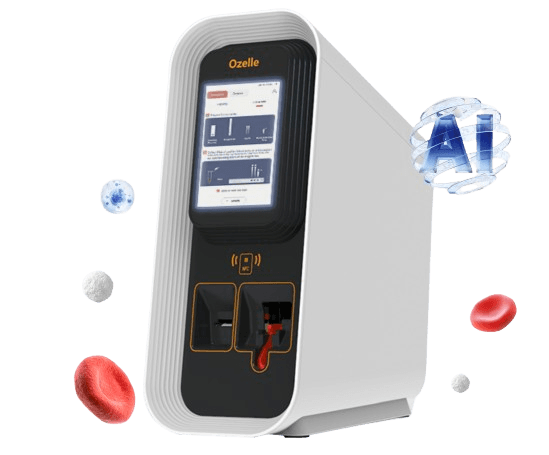

Ozelle EHBT-75 7-Diff Auto Hematology Analyzer

Ozelle

EHBT-75

7-Diff Auto Hematology Analyzer — Deeper Clinical Insights from a Single Drop


AI-powered, image-based blood cell morphology analyzer delivering intelligent 7-differential diagnostics with fully automated sample processing from a single drop of blood.


  • 7-Diff classification including NST, NSG, NSH, ALY, PAg & RET
  • Deep learning AI for accurate cell identification & classification
  • High-resolution image-based detection of cellular structures
  • Liquid-based cytology staining for richer color dimension
  • Single-use cartridge — room temperature storage, maintenance-free
  • Fully automated: loading, staining, mixing & AI analysis
  • AI morphological report delivered in just 6 minutes
  • Capillary or venous whole blood — 30–60µL sample

 Download Brochure

EHBT-75 Product Features

AI-driven morphology analysis for expanded clinical decision support

AI-Powered Precision

Deep learning algorithms enable accurate cell identification and classification across all major cell types and sub-populations.

High-Resolution Morphology

Image-based detection with enhanced resolution captures clear cellular structures for reliable morphological reporting.

Liquid-Based Staining

Liquid-based cytology delivers richer colour dimension for improved visualisation and differentiation of blood cell populations.

Fully Automated Workflow

From collection to AI-generated report in 6 minutes — auto loading, staining, mixing and analysis with minimal operator input.

Single-Use Cartridge

Disposable test kit stored at room temperature — no maintenance required, eliminating cross-contamination risk.

Expanded 7-Diff Parameters

Identifies multi-classified cells: NST, NSG, NSH, ALY, PAg, and RET alongside standard CBC parameters for deeper clinical insights.

EHBT-75 Technical Specifications

Parameter Specification
Model EHBT-75
Principle Cell Morphology for CBM; Photoelectric Colorimetry for HGB
Parameters WBC, NEU#, LYM#, MON#, EOS#, BAS#, NEU%, LYM%, MON%, EOS%, BAS%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC, NST#, NST%, NSG#, NSG%, NSH#, NSH%, NLR, PLR, ALY#, PAg#, RET#, RET%
Sample Type Capillary / Venous Whole Blood
Sample Volume 30–60µL for loading  |  30µL for testing
Throughput 7–8 samples/hour
Display 7.0-inch Touch Screen, 1024 × 600 resolution
Communication 2 USB ports, Ethernet, Wi-Fi, Bluetooth
Printer External Thermal or A4 Printer
Power Supply AC 100–240V, 50/60Hz, 48VA
Dimensions (L×W×H) 415 × 203 × 483 mm
