Electrocardiogram (ECG)

Biocare iM 12 — Integrated ECG Monitoring

Biocare iM 12

ECG Monitoring

Integrated Electrocardiogram — 3-Lead, 5-Lead & 12-Lead


Advanced ECG monitoring built into the Biocare iM 12 Multi-Parameter Patient Monitor — providing real-time cardiac assessment with comprehensive arrhythmia detection for adult, pediatric, and neonate patients.


  • 3-lead and 5-lead selectable for standard bedside monitoring
  • Optional 12-lead ECG for full diagnostic analysis
  • HR range: Adult 15–300 bpm; Pediatric/Neonate 15–350 bpm
  • Sweep speed: 6.25, 12.5, 25.0, 50.0 mm/s
  • Detects 20 types of ventricular arrhythmia
  • S-T segment analysis with alarm thresholds
  • Pacer pulse analysis
  • 2-hour ECG waveform review
  • 2-minute holographic waveform display
  • 700-piece event recall storage
  • Anti high-frequency electrotome & defibrillation protection

View Full Monitor     Download Brochure

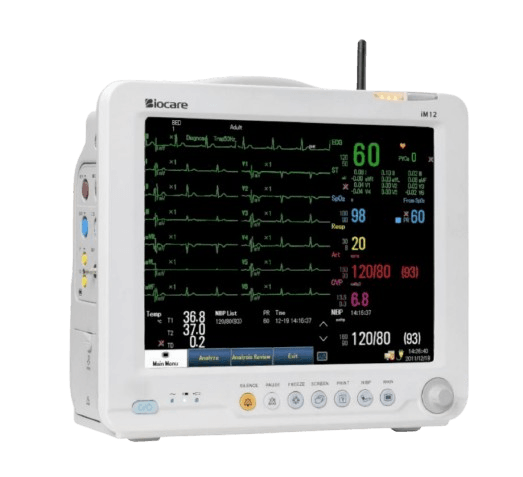

Biocare iM 12 Multi-Parameter Patient Monitor

ECG Capabilities

Comprehensive cardiac monitoring for every clinical setting

3-Lead & 5-Lead Monitoring

Selectable lead configurations for routine bedside monitoring across adult, pediatric, and neonatal patients. Lead selection: 3-lead (I, II, III) and 5-lead (I, II, III, aVR, aVF, aVL).

12-Lead ECG (Optional)

Full 12-lead ECG with leads I, II, III, aVR, aVF, aVL, V1–V6 for comprehensive cardiac diagnosis. Supports 7-lead half screen, 7-lead full screen, and 12-lead full screen display modes.

Arrhythmia Analysis

Automatically detects and classifies 20 types of ventricular arrhythmia with auditory, visual, and character alarm outputs. Low, medium, and high alarm levels are configurable.

S-T Segment Analysis

Continuous S-T segment monitoring with configurable alarm thresholds — essential for early detection of myocardial ischemia and infarction at the bedside.

Pacer Pulse Analysis

Dedicated pacer pulse detection and analysis for patients with implanted cardiac pacemakers, ensuring accurate HR readings without pacemaker spike interference.

Waveform Review & Storage

2-hour holographic ECG waveform review and recall. Up to 700-piece event storage. 480-hour trend graph storage provides longitudinal cardiac trend analysis.

ECG Technical Specifications

ECG Parameters
Lead Type3-lead & 5-lead selectable; 12-lead optional
Lead Selection (3-lead)I, II, III
Lead Selection (5-lead)I, II, III, aVR, aVF, aVL
Lead Selection (12-lead)I, II, III, aVR, aVF, aVL, V1–V6
Gain Selection×1/8, ×1/4, ×1/2, ×1, ×2, ×4; auto
Sweep Speed6.25, 12.5, 25.0, 50.0 mm/s
Measurement Range−2.0 mV to +2.0 mV
Accuracy±0.8 mV or ±0.02 mV / ±10% (whichever greater)
Heart Rate (HR)
Adult Range15 – 300 bpm
Pediatric / Neonate15 – 350 bpm
Resolution & Accuracy±1 bpm

Filter Modes
Diagnostic Mode0.05 Hz – 100 Hz
Monitoring Mode0.5 Hz – 25 Hz
Surgical Mode1 Hz – 15 Hz

ECG is Part of the Biocare iM 12 Patient Monitor

The Biocare iM 12 delivers integrated ECG monitoring alongside SpO₂, NIBP, RESP, TEMP, and optional EtCO₂ and IBP — giving your clinical team a complete bedside picture in a single device.

View Full Biocare iM 12 Specs
